DIN cast iron flange end swing check valve SAFVAL manufacturer from China Qingdao Safval Valve Co.,Ltd

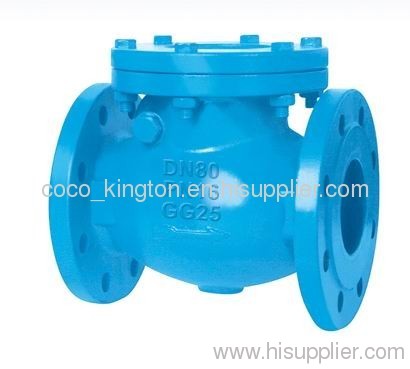

DIN cast iron flange end swing check valve

Price:	5.0~1000.0 USD
Payment Terms:	L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SAFVAL

Production Capacity: China

Delivery Date: 30 days

Standard or Nonstandard: Standard

Structure: Check

Temperature of Media: Medium Temperature

Brand Name: SAFVAL

Means of Transport: Ocean,Air

Packing: plywood case

Power: Manual

Pressure: Medium Pressure

Material: Casting

Media: Water

DIN check valve/swing check valve/ cast iron check valve/flange connection check valve/DN40-300/PN16

DIN cast iron flange end swing check valve

1. Spec

DN40-300,PN16

Test pressure: shell/2.4MPa;Sealed/1.76Mpa

Medium: water/oil/steam

Face to face dimension DIN3202 F6

Flange drilling BS EN1092

2. Design & Material

No	Name of part	material
1	Body	Cast iron EN-GJL 250
2	Seat Ring	Brass
3	Disc Ring	Brass
4	Disc	Cast iron EN-GJL 250
5	Hanger	Cast ductile iron EN-GJS-400-15
6	Washer	Carbon steel
7	Nut	Carbon steel
8	Split Pin	Stainless steel SS 304
9	Disc Screw	Carbon steel
10	Hexagon plug	Brass YB146-71 HPb59-1
11	Hanger Pin	Stainless steel SS 3304
12	Bonnet	Cast iron EN-GJL 250
13	Gasket	Graphite
14	Bolt	Carbon steel
15	Pin	stainless steel SS 304

3. Size

size	L	D	D1	D2	b	f	n-d
40	180	150	110	84	18	3	4-19
50	200	165	125	99	20	3	4-19
65	240	185	145	118	20	3	4-19
80	260	200	160	132	22	3	8-19
100	300	220	180	156	24	3	8-19
125	350	250	210	184	26	3	8-19
150	400	285	240	211	26	3	8-23
200	500	340	295	266	30	3	12-23
250	600	405	355	319	32	3	12-28
300	700	460	410	370	32	4	12-28

SAFVAL------- an ideal choice of industrial valves

Qingdao Safval Valve Co.,Ltd established in Qingdao China, has been designing, manufacturing and exporting with SAFVAL brand valves for valve industry in different applications ( water, steam, oil, chemical, gas, marine....)

SAFVAL supplies these various valves as per the customers' specification and in compliance with industry standards. Owing to high quality raw material, advanced casting and machining process and morden scientific testing facilities, we are instrumental in offering industrial valves with durability, high performance, corrosion resistance and dimensional accuracy.
